EE&EF TYPE

Specification Size(mm) Effective Magnetic Circuit Parameters AL±25%(nH/N2)
A B C D E(min) F C1 Ae Le Ve Weigh YR28 YR48 YR98
(mm-1) (mm²) (mm) (mm³) t(g)
EE6.5/3-M 6.7±0.3 3.35± 3.0± 1.3± 5.1min 2.6± 4.17 4 16.6 66.5 0.35 300 360 400
0.1 0.15 0.15 0.15
EE8.3/4 8.4±0.4 4.4±0.2 3.9±0.2 2.1+0-0.3 6.3min 3.4±0.2 3 7 21.1 148.7 0.92 650 650 800
EE8.3/6 8.5±0.4 4.75± 5.9±0.2 1.9±0.2 6.5min 3.5± 2 10.7 21.6 232 1.52 1000 1050 12
0.2 0.15 0
EE8.3B/4 8.3±0.3 4.4±0.2 3.9±0.2 2.1±0.2 6.0min 3.4±0.2 2.64 7.93 21 166.5 0.9 750 800 1200
EE8.4C 8.4± 2.05± 3.95+0.1 1.80± 6.40± 1.05± 1.519 7.84 11.9 93.31 0.82 800 850 1200
0.3 0.2 5/-0.10 0.1 0.15 0.2
EE8.8/4-M 8.7±0.4 4.3±0.2 3.9±0.2 2.1±0.2 6.3min 3.2±0.2 2.56 8.21 21.1 173.2 1.2 750 800 1200
EE9.0/5 8.9± 3.9± 4.6± 2.6± 6.5± 2.8± 1.64 11.31 18.58 210.12 1.3 1000 1050 1200
0.25 0.15 0.15 0.15 0.25 0.15
EE9.8/5 9.8±0.4 4.2±0.2 4.6±0.2 2.4±0.2 7.0min 3.0±0.2 1.91 10.88 20.8 226.3 1.23 1050 1080 1300
EE9.8A/5 10.1± 4.5±0.2 4.65± 2.6±0.2 7.5min 3.3±0.2 1.9 11.33 21.14 235.27 1.94 1050 1080 1300
0.4 0.2

Specification Size(mm) Effective Magnetic Circuit Parameters AL±25%(nH/N2)
A B C D E(min) F C1 Ae Le Ve Weigh YR28 YR48 YR98
(mm-1) (mm²) (mm) (mm³) t(g)
EE10/9.4/3 10±0.15 4.7±0.1 3±0.12 3.2±0.1 6.7min 3.1±0.1 2.22 9.49 21.8 200.09 0.6 780 860 1250
EE10.6/5 10.6±0.4 5.6±0.2 4.85±0.2 2.5±0.2 7.5min 4.5±0.2 2.18 12.4 27.1 337.2 2 850 950 1200
EE10.6B/5 10.6± 5.9± 5.25± 2.7±0.2 7.5min 4.4±0.2 1.98 13.7 27.2 373.7 2.2 900 1000 1250
0.4 0.15 0.15
EE10.4B/10 10.4±0.4 5.65±0.2 9.8±0.25 2.4±0.2 7.5min 4.45±0.2 1.1 23.8 24.5 632 3.7 1600 1650 2000
E10.4/9.6 10.4±0.4 5.7±0.2 9.6±0.25 2.3±0.2 7.7min 4.5±0.2 1.2 22.8 27.4 625 3.6 1500 1600 1900
E10.3/9.6 10.3±0.4 5.75±0.2 9.6±0.25 2.0±0.2 7.5min 4.55±0.2 1.33 20.8 27.7 575.7 3.3 1500 1600 1900
EE10.8/5 10.8±0.4 5.6±0.2 4.85±0.2 2.5±0.2 8.0min 4.5±0.2 2.35 11.1 27.6 306.4 1.9 900 1000 1250
GDE10.2/5 10.2±0.4 5.6±0.2 4.8±0.2 2.5±0.2 7.5min 4.4±0.2 2.25 11.7 26.3 307 2.02 YR46/ YR56/ YR66/
1400 2000 2600
EE11A/5 11.6±0.4 5.7±0.2 4.8±0.2 2.5±0.2 8.5min 4.4±0.2 2.3 12.2 28.1 342.2 2.2 900 950 1200
EE11A/5-L 11.6±0.4 4.65±0.2 4.8±0.2 2.5±0.2 8.5min 3.35±0.2 1.95 12.2 23.8 291 1.7 1000 1050 1300
EE11/7 12.1±0.3 6.1±0.2 7.7±0.3 2.6±0.2 8.8min 4.6±0.2 1.36 21.6 29.4 635 3.66 1400 1450 1800
EE11B/10 11.0±0.3 5.6±0.2 9.7±0.25 2.5±0.2 8.5min 4.5±0.2 1.26 22 27.8 611.8 3.6 1600 1650 2000
GDEE11E 11.2±0.2 6.15±0.15 3.1±0.3 2.3±0.1 7.8±0.2 4.05± 2.8 9.14 25.6 234.03 1.58 YR46 YR56 YR66
0.15 600 850 1200
GDEE12 11.9± 6.5± 3.7± 2.5± 8.6min 4.9± 3.19 9.25 29.55 352.3 2.6 YR46 YR56 YR66
0.4 0.3 0.2 0.2 0.3 1200 1400 2880
min
EE12.1 12.1±0.3 6.35±0.15 4.9±0.15 2.5± 9.3MIN 4.65± 2.13 13.44 28.7 285.4 2.5 1350 1400 1750
0.15 0.15
E12/11/7 12.1±0.3 5.8± 6.9± 2.7± 8.8min 4.2± 1.43 19.5 27.8 544.5 3.6 1200 1300 1550
0.2 0.25 0.2 0.2

Specification Size(mm) Effective Magnetic Circuit Parameters AL±25%(nH/N2)
A B C D E(min) F C1 Ae Le Ve Weigh YR28 YR48 YR98
(mm-1) (mm²) (mm) (mm³) t(g)
EE12.9/5.0 12.9± 4.6±0.2 5.0± 2.3±0.2 9.1min 2.75± 1.5 14.91 22.4 334.5 1.9 1100 1200 1600
0.4 0.2 0.2
GDEE12.9/3.6 12.9±0.4 7.7±0.2 3.6±0.3 2.7±0.2 10.1min 6.0+0.2/-0 3.57 10.1 36 363.6 2 YR46/ YR56/ YR66/
0.1 1200 1400 1750
EE13/6 13.0±0.4 6.2±0.2 5.9±0.25 2.7±0.2 10.0min 4.8±0.2 1.95 16 31.1 498 2.82 1000 1050 1300
EE13.5/6 13.5±0.4 6.3±0.2 5.8±0.2 2.7±0.2 10.3min 4.9±0.2 1.96 16.2 31.8 516.6 3 1000 1050 1300
(13-LS)
E13.6/6 13.6±0.4 6.3±0.2 6.0±0.2 2.7±0.2 10.3min 5.0±0.2 2 16 32.1 514 3 1000 1050 1300
EE13/6.15 13.0± 6.2±0.2 6.15± 2.8±0.2 9.9min 4.8±0.2 1.8 17.2 31 533.2 3.03 1100 1200 1600
0.4 0.2
GDE13/6 13.1±0.4 6.3±0.2 5.9± 2.7±0.2 10.0min 4.9±0.2 1.81 17.2 31.4 541 3.3 YR46/ YR56/ YR66/
0.25 1700 1950 2100
EE13L/6 13.0±0.4 5.0±0.2 5.9±0.2 2.7±0.2 9.8min 3.6±0.2 1.59 16.5 26.3 434 2.5 1250 1300 1800
E13G/6 13.1±0.4 6.75± 5.8±0.2 2.7±0.2 10.0min 5.4±0.2 2.19 15.3 33.5 514 2.9 980 1030 1280
0.2
EE13C/10 13.0±0.4 6.2±0.2 9.9±0.25 2.7±0.2 9.9min 4.8±0.2 1.1 28.4 31.3 889 5 1900 1980 2500
EE13B/10 13.0±0.4 6.5±0.2 9.8±0.25 3.5±0.25 8.9min 4.8±0.2 0.85 35.1 29.9 1050 6 2200 2300 2870
EE13.3A/10 13.3±0.4 7.0±0.2 9.9±0.25 3.6±0.2 9.9min 5.0±0.2 0.93 34.6 32.1 1109.9 6.5 2100 2200 2750
EE13.5/5 13.5±0.4 5.7±0.2 5.5±0.15 2.9± 9.7±0.4 3.7±0.2 1.095 23.03 25.22 580.6 3.2 1000 1100 1400
0.15
EE13.7/10 13.7±0.4 6.6±0.2 9.8±0.25 3.6±0.2 10.4min 4.9±0.2 1.03 30.71 31.65 972 6.3 2000 2100 2600

Specification Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C D E(min) F C1 Ae Le(mm) Ve(mm³) Weight YR28 YR48 YR98
(mm-1) (mm²) (g)
EE13.8/10 13.8±0.4 6.65±0.2 9.8±0.25 3.5±0.2 9.5min 4.9±0.2 0.89 35.4 31.6 1121.5 6.6 2000 2100 2600
EE14/7 14.0±0.4 4.4±0.15 7.15±0.2 3.4±0.15 10.3min 3.0±0.15 1.06 22.7 24.1 547.1 3.36 1900 1980 2500
EE14C/3.6 14.1±0.3 6.8±0.2 3.6±0.2 3.5±0.2 10.2min 4.8±0.2 2.41 12.96 31.33 406.1 2.45 800 850 1200
EE14A-10 14.3±0.4 7.4±0.25 9.7±0.3 3.5±0.25 11.0min 5.7±0.25 1.143 31.19 35.64 1111.5 6.6 1700 1800 2300
EE14.2 14.2±0.4 6.7±0.2 9.75±0.2 3.5±0.15 10.3MIN 5.05±0.2 0.977 33.5 32.72 1096 6.05 2000 2100 2600
EE14.5/5(E14B) 14.4±0.4 6.0±0.2 5.4±0.2 3.9±0.15 10.0min 4.1±0.2 1.39 20.9 29 606.3 3.57 1400 1450 1800
EE14E-6.3 14.4±0.4 4.4±0.15 6.3±0.2 3.4±0.15 11.0min 3.0±0.15 1.13 20.66 23.36 482.45 3.2 1650 1700 2200
EE14F-9.9-6.4 14.2±0.4 4.95±0.2 6.4±0.25 3.55±0.2 10.1min 3.15±0.2 1.09 23.13 25.22 583.23 4 1650 1700 2200
EE14.5B/7 14.5±0.4 5.3±0.3 7.0±0.2 3.6±0.2 11.0min 3.7±0.2 1.2 22.9 27.6 632 3.91 1600 1670 2080
E14/9 14.0±0.5 5.3±0.2 9.0±0.3 3.3±0.2 10.5min 3.5±0.25 0.87 30.6 26.8 820 4.3 2400 2500 3130
EE14D 14.1±0.3 6.8±0.1 3.6±0.2 3.5±0.2 10.2min 4.9±0.15 2.51 12.9 32.4 417.9 2.4 800 850 1050
EE15/11.4/11.7 15±0.4 5.7±0.15 11.7+0.1/ 3.5±0.15 11.5min 4.0±0.15 0.75 39.1 29.38 1148.8 7.2 2300 2500 3100
-0.25
EE16/5 16.0±0.4 7.4±0.2 4.8±0.2 4.0±0.2 11.6min 5.45±0.2 1.87 19.3 36 696.5 3.76 1050 1100 1500
EE16C/5 16.1±0.4 7.5±0.2 4.8±0.2 4.0±0.2 11.8min 5.6±0.2 1.95 18.7 36.6 686.9 1100 1200 1600
GDEE16/5 16.1±0.5 7.5±0.2 4.9±0.2 4.0±0.2 11.6min 5.45±0.2 1.85 19.6 36.3 700.6 4.1 YR46/ YR56/2 YR66/
1650 0 2300
GDEE16/20/4.7 16.2± 10.2±0.15 4.7+0.1/- 4.7+0.1/-0 11.3+0.4/- 7.8±0.15 2.08 21.87 45.49 994.8 6.7 YR46/ YR56/2 YR66/
0.25 0.2 0.2 0 1700 0 3700
EE16/6.5 16.0±0.4 7.5±0.2 6.5±0.25 4.0±0.2 11.6min 5.4±0.2 1.38 26.1 36 943.2 5.3 1450 1500 1900
EE16/8 16.0±0.4 7.5±0.2 7.8±0.25 4.0±0.2 11.6min 5.4±0.2 1.15 31.4 36.1 1132 6.5 1700 1780 2200
EE16/10 16.0±0.4 7.5±0.2 10.0±0.3 4.0±0.2 11.6min 5.4±0.2 0.89 40.2 36 1451 8.15 2200 2300 2870
EE16F 16±0.3 7.2±0.2 6.8±0.2 3.2±0.2 12.5min 5.5±0.15 1.65 22.2 36.76 816.07 4.9 1000 1050 1200
E16.2/12/10 16.2±0.4 6.0±0.2 10.0±0.3 4.0±0.2 12.3min 4.0±0.2 0.79 38.6 30.6 1181.2 6.5 2600 2700 3400

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C D E(min) F C1 Ae Le Ve Weigh YR28 YR48 YR98
(mm-1) (mm²) (mm) (mm³) t(g)
EE16.2/10 16.2±0.4 7.65± 10.0±0.3 4.0±0.2 12.3min 5.65±0.2 0.98 38 37.2 1413.6 7.75 2200 2300 2870
0.2
EE16.2A-10 16.25±0.33 8.0± 10.41± 3.05± 9.5min 4.82± 0.704 43.9 30.95 1360.2 11 YR46/ YR56/ YR66/
0.13 0.2 0.2 0.15 2 6000 8000 10000
min min min
EE16B/7 16.2±0.4 6.1± 7.0±0.25 4.45±0.2 11.6min 4.10±0.2 1.02 29.6 30.3 896.88 4.9 1800 1900 2350
0.2
EE16.4 16.4±0.4 7.85± 7.2±0.15 4.25±0.12 12.2± 5.75±0.2 1.237 30.36 37.57 1140.6 6.5 1800 1900 2350
0.2 0.4 6
EE16.4A-10.6 16.2±0.4 5.2± 8.9±0.2 4.2±0.2 11.9min 3.15± 0.75 36.18 27.08 979.94 6.2 1900 2000 2600
-8 0.15 0.15
EE16.5/5 16.5±0.4 7.65±0.2 4.9±0.2 4.0±0.2 12.0min 5.35±0.2 1.79 20.4 36.5 746 4.2 1200 1300 1800
EE16.5B/9 16.5±0.4 6.5±0.2 9.0±0.3 3.0±0.2 9.7min 4.2±0.2 0.8 35.6 28.6 1018.2 6.2 2600 2700 3700
EE17/5(E17X) 16.9±0.4 7.7±0.2 4.8±0.2 3.9±0.2 12.5min 5.6±0.2 2.01 18.8 37.7 708 4.1 1100 1200 1600
E17/8 16.9±0.4 7.7±0.2 7.9±0.2 3.9±0.2 12.5min 5.6±0.2 1.16 31.5 36.6 1152.9 6.5 1900 1980 2400
E17A/6 17.6±0.4 7.8±0.2 6.1±0.2 5.4±0.2 13.4min 5.7±0.2 1.4 26.6 37.4 994.7 5.9 1400 1450 1800
EE17B/6 16.9±0.4 6.3±0.2 5.9±0.2 4.8±0.2 11.8min 4.2±0.2 1.18 26.4 31.3 826.3 4.64 1800 1880 2350
EE17D/13/10 16.9±0.4 6.6±0.2 9.85±0.2 4.1±0.15 12.6min 4.55±0.2 0.834 40.06 33.4 1337.8 8 2100 2200 3100
EE17F/12/8 17.0±0.4 5.85±0.2 8.0±0.2 4.6±0.2 12.4min 3.7±0.15 0.856 34.8 29.8 1037.2 6.1 2300 2400 3000
EE17.1/12.6 17.1±0.4 8.0±0.2 12.6±0.2 4.0±0.2 12.5min 5.9±0.2 0.735 52.92 38.9 2058.6 11.7 2400 2500 3200
EE17.5/10 17.5±0.4 7.6±0.2 10.0±0.3 4.0±0.2 13.1min 5.6±0.2 0.95 40 38.2 1527.4 8.46 2200 2300 2700
EE17.5B/7 17.4±0.3 7.5±0.2 6.8±0.2 4.0±0.2 13.1min 5.5±0.2 1.4 27 37.7 1018 5.8 1500 1600 1900
EE17.5B/10 17.4±0.3 7.5±0.2 10.0±0.3 4.0±0.2 13.1min 5.5±0.2 0.95 39.7 37.8 1500.7 8.45 2200 2300 2870

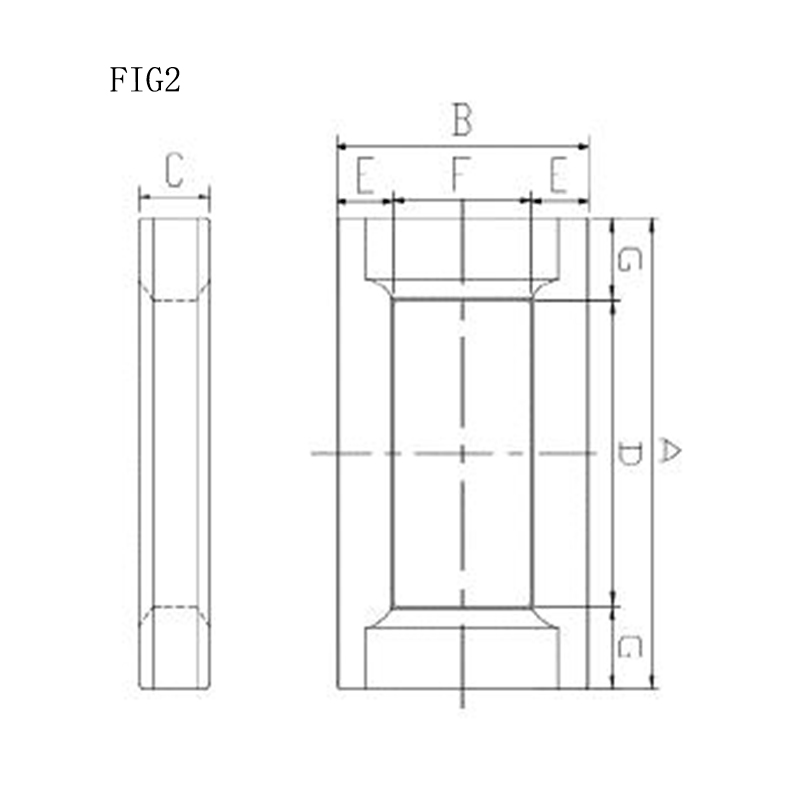

EE17.5/6/7.5FIG2 17.5±0.3 6.4±0.1 7.5±0.15 5.2±0.13 12.2min 4.0±0.15 0.831 38.23 30.704 1173.8 6.8 2100 2200 2600
EE17.5C/8 17.6±0.3 6.7±0.2 8.2±0.15 4.7±0.2 12.8min 4.6±0.2 0.96 35.4 34.098 1207.1 7.4 1900 1980 2400
EE18/12/7.4 18.3±0.4 6.2±0.2 7.4±0.3 5.5±0.2 12.3min 3.7±0.20 0.748 39.36 29.43 1158.4 5.4 2300 2400 3300

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C D E(min) F C1 Ae Le(mm) Ve Weight YR28 YR48 YR98
(mm-1) (mm²) (mm³) (g)
EE19/5 19.1±0.4 8.1±0.2 4.9±0.2 4.5±0.2 14.0min 5.8±0.2 1.79 22.5 40.3 908.2 4.8 1100 1100 1500
EE19B/5 19.1±0.4 7.3±0.2 5.1±0.2 5.4±0.2 13.4min 4.8±0.2 1.33 26.8 35.6 954 5.5 1600 1670 2080
GDEE19/5 19.1±0.4 8.15± 4.9±0.2 4.5±0.2 14.0min 5.7±0.25 1.76 22.8 40.2 916.56 5.1 YR46/ YR56/2 YR66/
0.25 1900 400 2700
EE19/6.5 19.1±0.4 8.1±0.2 6.5±0.2 4.5±0.2 14.0min 5.8±0.2 1.35 29.9 40.3 1205 6.7 1500 1600 1900
EE19/10 19.1±0.4 8.1±0.2 9.6±0.3 4.5±0.2 14.0min 5.8±0.2 0.91 44.1 40.3 1779.3 9.8 2350 2450 3100
EE19.2/10 19.±0.4 8.1±0.2 9.6±0.3 4.7±0.2 14.3min 5.8±0.2 0.91 44.1 40.4 1783 9.86 2350 2400 3050
EE19/13 19.1±0.4 8.1±0.2 13.0±0.3 4.5±0.2 14.0min 5.8±0.2 0.67 59.8 40.3 2410 13.1 2900 3100 3800
EE19/13L 19.1±0.4 6.0±0.2 13.0±0.3 4.5±0.2 13.8min 3.5±0.2 0.5 62.2 31.3 1949 10.8 4000 4170 5200
EE19.3/16/ 19.3±0.4 8.15± 4.9±0.2 4.7±0.2 14.1min 5.8±0.2 1.79 22.69 40.59 920.93 5.45 1200 1250 1700
5 0.2
E19/9.0 19.4±0.4 8.3±0.2 8.7±0.3 5.7±0.2 14.8min 6.1±0.2 1.03 39.36 40.5 1594 9.14 2100 2200 2750
EE19.8/14. 19.8±0.35 7.35± 12.0± 5.75± 13.8min 4.35± 0.507 68.2 34.6 2360 14 4600 4800 6000
3月12日 0.15 0.25 0.15 0.15
EE19.9/16. 19.9±0.44 8.3± 10.1± 5.05±0.2 14.4min 5.7±0.25 0.789 51.5 40.64 2093.3 12 2300 2400 3300
6月10日 0.25 0.25 8
EE20.5/7 20.5±0.4 9.6±0.25 6.65±0.25 5.0±0.2 14.7min 7.0±0.25 1.34 34.4 46.3 1592 8.6 1450 1500 1900
EE20/9.6 20.0±0.4 8.0±0.2 9.6±0.3 4.55±0.2 15.4min 5.7±0.20 0.97 42.2 41 1730.2 10 2300 2400 3000
EE20B/16 20.0±0.4 7.35±0.2 16.0±0.3 5.7±0.2 14.2min 4.35±0.2 0.39 90.2 35.2 3174 18.9 5000 5200 6500

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C D E(min) F C1 Ae Le(mm) Ve Weight YR28 YR48 YR98
(mm-1) (mm²) (mm³) (g)
EE20.3 20.3±0.35 8.1±0.2 4.9±0.2 4.9±0.2 15.0min 5.8±0.2 1.75 23.47 41.13 965.25 5.5 1200 1300 1560
EE21/7 21.1±0.4 10.3± 6.65±0.25 4.8±0.2 14.5min 6.9±0.25 1.24 37.5 46.6 1747.5 4.95 1700 1780 2200
0.25
EE22A/6 22.0±0.5 9.3±0.25 6.0+0-0.5 6.0+0-0.5 15.5min 5.7±0.25 1.18 36 43 1565 8.8 1600 1680 2070
EE22B/6 21.5±0.4 9.3±0.2 5.8±0.2 6.0±0.2 15.1min 6.0±0.2 1.92 49.96 95.93 4972.5 8.2 2700 2800 3500
EE22/9 22.5±0.5 9.5±0.2 8.7±0.25 5.7±0.25 16.5min 5.7±0.2 0.83 54.3 44.8 2433 13.8 2600 2700 3500
EE22.5A/12.5 22.5±0.4 9.0±0.2 12.5±0.2 6.2±0.2 16.1min 5.8±0.2 0.56 77.48 43.29 3354.42 19 3400 3500 4400
EE22.5B/16/1 22.5±0.4 8.3±0.2 12.5±0.2 6.2±0.2 16.1min 5.4±0.2 0.55 74.8 41.2 3083.4 17 3100 3200 4300
2.5
EE23B/17 23.4+0.45/-0 8.5±0.2 8.2±0.2 7.2±0.2 17.5min 5.0±0.2 0.753 54.9 41.3 2269.7 13 2300 2400 3000
0.4
EE23/19 23±0.4 9.6±0.2 8.8±0.2 5.66±0.2 17.6min 6.25±0.2 0.92 50.29 46.26 2326.45 13.6 2600 2700 3500
EE24A-10 24.125±0.5 10.54± 9.02±0.2 4.85±0.2 13.0min 5.21±0.17 0.61 63.22 38.58 2439.07 20.2 YR46/ YR56/ YR66/
0.125 7000min 8000 10000min
min
EE24/18 24.4±0.4 8.9± 13±0.20 6.3+0.1/-0 17.7min 5.8±0.20 0.56 78.9 44.6 3522.4 21 4000 4300 5300
0.2 0.2
EE25.4/6 25.4±0.5 10.0±0.2 6.4±0.25 6.4±0.25 18.6min 6.9±0.2 1.25 40.4 50.7 2070 10.8 1600 1680 2070
EE25.4/7 25.4±0.5 10.1±0.2 6.9±0.25 6.4±0.25 18.6min 7.0±0.2 1.18 43 50.7 2180.1 11.71 1800 1880 2350
GDEE25.4/6 25.4±0.5 10.0±0.2 6.4±0.25 6.4±0.25 18.6min 6.9±0.2 1.19 40.4 50.7 2070 10.9 YR46/ YR56/3 YR66/
-M 3000 550 4500
EE26.5/12 26.3±0.5 10.7±0.2 11.65± 8.35±0.15 18.5±0.5 6.8±0.2 0.536 47.77 92.86 4622.1 26.2 4200 4300 5400
0.15 5
E26.6/8.1 26.6±0.5 11.5±0.2 8.1±0.25 8.0±0.2 19.2min 7.2±0.2 0.837 63 52.7 3322 19.5 3100 3250 4050

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C D E(min) F C1 Ae Le(mm) Ve(mm³) Weigh YR28 YR48 YR98
(mm-1 (mm²) t(g)
EE28/11 28.2±0.6 10.6±0.25 11.0+0/-0.5 7.4±0.25 20.0min 6.5±0.25 0.62 83.2 51.5 4281.3 23 3300 3500 4300
EE28C/10.5 28.2±0.6 10.1±0.25 10.5±0.3 7.1±0.25 20.8min 6.6±0.25 0.7 73.5 51.6 3792.6 22 3500 3750 4700
EE30A/10 30.7±0.6 13.4± 10.7±0.3 10.4±0.3 20.8min 8.4±0.25 0.56 106.8 59.9 6397 36 3600 3760 4700
0.25
EE30B/10 30.0± 13.5± 10.6±0.3 10.6±0.3 19.8min 8.6± 0.57 104.5 59.8 6248.4 35.3 3500 3750 4700
0.6 0.25 0.25
EE31/11 31.4± 13.8±0.2 10.8± 10.4±0.25 22.8min 8.8±0.2 0.62 100.3 62.5 6273.3 36.1 3150 3300 4100
0.5 0.25
EE32/9 32.4±0.6 16.2±0.25 9.1±0.3 9.2±0.25 23.0min 11.8±0.25 0.9 83.2 75.2 6260 32.4 2400 2500 3100
EE33/13 33.0±0.6 14.4± 13.0+0-0.6 9.7±0.3 23.7min 10.1±0.25 0.61 113 69 7797 42.3 3500 3750 4700
0.25
EE35B/17 35.6±0.5 12.7± 17.0± 7.0± 28.6± 9.5±0.15 0.61 114.7 70 8031.7 45.2 3500 3700 4800
0.15 0.35 0.25 0.5
EE40/14/17 40.0±0.5 7.1±0.15 17.0±0.3 6.0±0.25 33.4min 4.4±0.15 0.56 97.74 54.25 5303 31 4000 4170 5200
EE40.8/15/22 40.8±0.6 7.6±0.2 22.0±0.4 6.0±0.2 34.8±0.5 4.6±0.2 0.43 56.78 130.6 7415.7 44.2 4400 4600 5800
EE42/15 42.0±0.7 21.2±0.3 15.0±0.4 12.0±0.3 29.5min 15.2±0.3 0.53 181 97.3 17611 117 4000 4170 5200
EE42B/13 42.4±0.6 6.3±0.15 13.5±0.3 4.8±0.2 37.0min 4.1±0.15 0.92 61.1 56.3 3439 20.4 2100 2200 2750
EE42/13N 42.0±0.7 21.2±0.3 15.0±0.4 12.0±0.3 29.5min 15.2±0.3 0.429 132 56.62 7474 44 6200 6470 8100
EE42B/16 42.5±0.6 6.6±0.2 16.5± 4.8±0.2 37.0min 4.3±0.2 0.74 77.3 57.4 4436.8 25 2800 2900 3650
0.35
EE42.5/43/ 42.5±0.6 21.5±0.2 19.8± 12.0± 30.1min 15.4± 0.42 236.9 99.23 23512 127.2 6000 6300 7800
20 0.25 0.25 0.25 4 68
EE45.3-16- 45.3±0.5 7.95±0.2 16.0+0.2/ 6.5±0.2 38.0±0.4 7.95±0.2 0.59 104 61.31 6376.2 36.2 4000 4100 5200
16 -0.25
EE47/21 47.0±0.7 6.2±0.2 21.0± 5.0±0.2 42.0+0.6-0 4.2±0.2 0.68 89.3 60.3 5385 33.2 3200 3300 4200
0.35 0.5
EE47/17 47.0±0.5 8.55± 21.0± 5.0±0.25 42±0.5 6.55± 0.765 90.92 69.54 6322.2 38 2600 2700 3900
0.15 0.25 0.15 9

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C D E(min) F C1 Ae Le(mm) Ve(mm³) Weigh YR28 YR48 YR98
(mm-1) (mm²) t(g)
EE50/14/20 50.0±0.5 7.7±0.15 20.3±0.3 6.5±0.2 43.5±0.5 4.8±0.15 0.53 122 65.7 8041.4 31 4400 4600 5750
EE50.4/16. 50.4±0.5 6.6±0.15 16.±0.25 5.6±0.2 44.2±0.4 3.8±0.2 0.67 93.75 63.14 5912.4 35 3600 3700 4600
5
EE55/21 55.2±1.05 27.5±0.3 21.0+0 16.95±0.3 37.5min 18.8±0.3 0.36 343 124 42640 229.6 6300 6500 8150
/-0.8
EE55/25 55.2±1.05 27.5±0.3 25.0+0 16.95±0.3 37.5min 18.8±0.3 0.295 420 124 52100 280 7800 8000 10000
/-0.8
EE62-24-11.5 62.0±0.8 11.5±0.25 24.0±0.3 15.0±0.25 47.0±0.8 4.0±0.25 0.199 360 71.56 25762 150 11500 12000 15000
3
EEW64-34-35 64.0±0.7 17.0±0.3 35.0±0.4 12.0±0.3 54.0±0.7 12.0±0.3 0.29 364.5 105.9 38609 214 7000 7300 9100
EE65/65/27 65.2±1.5 32.5±0.3 26.9±0.4 19.65±0.35 44.2min 22.6±0.4 0.27 536.8 146.65 78732 425 9600 10000 12500
7 5
EE70/32 70±1.5 33±0.3 31.75±0.8 21.5±0.6 48±1.5 22.5±0.3 0.22 683.3 150 102523 550 11500 12000 15000
EE80/75/40 80±1.5 37.65± 40.4±0.6 19.9±0.4 61.4±1.5 28.35±0.4 0.235 782.8 183.9 143965 750 11000 11500 14000
0.4 5 0.83

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C D E(min) F C1 Ae Le Ve Weight YR28 YR48 YR98
(mm-1) (mm²) (mm) (mm³) (g)
EF12.7/3.5 12.7±0.3 6.5±0.2 3.5±0.2 3.5±0.2 9.1min 4.8±0.2 2.67 11.4 30.5 348.4 2.02 770 800 1000
EF14/6 14.2±0.3 5.5±0.2 6.0±0.2 3.6±0.2 10.2±0.3 3.6±0.2 1.18 22.7 26.9 610.63 3.74 1800 1880 2350
EF16/5 16.1±0.4 8.1±0.2 4.5±0.2 4.55±0.2 11.3min 5.9±0.2 1.88 20.1 37.6 754 4.4 1100 1150 1450
EF16C/5 16.0±0.5 8.1±0.2 4.5±0.2 4.5±0.2 11.8min 5.9±0.2 1.99 19 37.8 718.2 4.3 1050 1100 1370
EF16B/8 16.1±0.4 6.0±0.2 8.2±0.2 4.55±0.2 11.3min 3.8±0.2 0.79 37 29.3 1084 6 2500 2600 3200
EF16/8 16.1±0.4 8.1±0.2 8.2±0.2 4.55±0.2 11.3min 5.9±0.2 1.02 36.81 37.65 1386 7.5 2100 2200 2750
EF20/6普通 20.0+0.6/-0 10.0±0.2 5.65±0.25 5.7±0.2 14.1min 7.2±0.2 1.47 31.6 46.6 1468 8.04 1500 1600 2000
0.4
EF20A/6 20.0+0.6/-0 9.1±0.2 5.65±0.25 5.7±0.2 14.1min 6.3±0.2 1.34 31.9 42.8 1365.3 7.9 1600 1670 2100
0.4
EF20B/6 20.0±0.4 10.2±0.3 5.7±0.2 5.75±0.1 14.6min 7.4±0.15 1.53 30.85 47.2 1456.39 8.2 1450 1500 2000
5
EF20/9 20.0±0.4 10.0±0.2 8.85±0.25 5.7±0.2 14.1min 7.2±0.2 0.94 49.3 46.4 2284 12.8 2200 2300 2870
EF20/11 20.0±0.4 10.0±0.2 10.6±0.25 5.7±0.2 14.1min 7.2±0.2 0.77 60.2 46.4 2791 15 2500 2600 3500
GDEF20.3 20.3±0.3 10.8±0.2 4.6±0.25 4.6±0.2 15.7±0.2 8.4±0.2 3.06 26.14 80.08 2093.4 6.44 YR36/ YR46/ YR56/
2200 3000 4400
GDEF20.5/11 20.5±0.4 11.3±0.1 10.5±0.3 6.0±0.2 14.25min 8.4±0.2 0.83 66.3 47.53 3151.2 19 YR36/ YR46/ YR56/
5000 6300 7700
EF20.5A/20/5 20.5±0.5 10.2±0.3 5.65±0.3 5.7±0.3 14.8min 7.4±0.3 1.34 33.5 44.9 1500 8.4 1400 1450 1950
EF20.5D/11 20.5±0.4 11.35±0.1 5.65±0.3 5.54±0.2 14.25min 8.45±0.15 0.86 60 51.9 3115.6 18 YR36/ YR46/ YR56/
4400 6100 7500
EF21/6 21.0±0.4 10.0±0.2 5.65±0.25 5.7±0.2 15.0min 7.3±0.2 1.51 31.6 47.8 1512 8.5 1500 1600 2000
EF21/9 21.0±0.4 10.0±0.2 8.85±0.25 5.7±0.2 15.0min 7.3±0.2 0.98 48.7 47.6 2318.1 13.7 2200 2300 2870
EF21/11 21.0±0.4 10.3±0.2 11.0±0.25 5.7±0.2 15.0min 7.6±0.2 0.81 60.5 48.9 2958 16.4 2700 2800 3500
EF21B/11 21.2±0.4 6.0±0.2 10.5±0.25 5.7±0.2 15.0min 3.5±0.2 0.575 56 32.2 1803.2 10.2 3000 3100 3900

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C D E(min) F C1 Ae Le Ve Weight YR28 YR48 YR98
(mm-1) (mm²) (mm) (mm³) (g)
EF25B/7 25.3±0.5 12.6±0.25 7.2±0.25 7.25±0.25 17.8min 9.0±0.25 1.14 51.1 58.3 2984 16.1 1900 2000 2500
EF25B/9 25.3±0.6 12.6±0.25 8.85±0.25 7.25±0.25 17.8min 9.0±0.25 0.92 63.2 58.3 3685 19.6 2100 2200 2750
EF25/9 25.2±0.6 13.0±0.25 8.7±0.2 7.0±0.2 17.8min 9.5±0.25 1.01 59.6 60.4 3600 19.5 2100 2200 2750
EF25B/11 25.3 12.7 10.75±0.2 7.25 17.8min 9.1 0.76 76.8 58.7 4506.6 24.4 2700 2800 3500
±0.6 ±0.25 5 ±0.25 ±0.25
EF25C/11 25.3±0.6 10.4±0.2 10.75±0.2 7.25±0.2 17.8min 6.8±0.2 0.648 76.45 49.54 3787.26 21 3600 3800 4800
5 5
EEL16/5 16.0±0.4 12.5±0.2 4.9±0.2 4.0±0.2 11.7min 10.4±0.2 2.93 19.1 56.1 1071.5 6.4 800 830 1050
EEL19/5 19.2±0.4 14.0±0.2 4.9±0.2 4.6±0.2 14.2min 11.3±0.2 2.7 23.2 62.8 1460 8.75 850 900 1100
EEL22/6 22.0±0.5 15.0±0.25 5.65±0.25 5.65±0.2 15.6min 11.6±0.3 1.96 33.9 66.4 2252 13.8 1100 1150 1450
5
EEL25.4/6.5 25.4±0.5 17.1±0.25 6.5±0.25 6.5±0.25 19.0min 13.8±0.3 1.92 40.7 78.1 3178 18.6 1100 1150 1450
Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C D E(min) F G C1 Ae Le(mm) Ve Weight YR28 YR48 YR98
(mm-1) (mm2) (mm3) (g)
EI22/6 22.0±0.5 15.5± 5.6± 5.6± 15.5min 11.4±0.25 3.9± 1.22 35.6 43.3 1541 9.2 1600 1700 2400
0.25 0.25 0.25 0.2
EI28/11 28.0±0.6 17.3±0.25 10.7±0.3 7.3±0.3 18.6min 13.0± 3.5± 0.6 83.6 50 4182.9 24.6 3200 3300 4150
0.25 0.25
EI30/11 30.0±0.6 21.5± 10.65± 10.6± 19.8min 16.8±0.3 5.65± 0.55 107 59.3 6357 36.5 3500 3600 4500
0.3 0.3 0.3 0.3
EI30A 32.6±0.4 21.5± 10.7± 10.70± 23.0min 16.5±0.3 5.5± 0.59 104 61.8 6431 38.7 3500 3600 4500
0.3 0.3 0.3 0.3
EI33 33.0±0.7 24.2± 12.7± 9.70± 23.8min 19.5±0.3 5.0± 0.57 117 67.4 7940 47.8 3800 4000 4900
0.3 0.3 0.3 0.3 8
EI40/12 40.0±0.8 27.3+0.6 12.0+0 12.2+0 27.3 20.3+0.6 7.5± 0.52 147 77.8 11473 65.5 4200 4400 5400
/-0 -0.6 /-0.6 min /-0 0.3
Specification  FIG Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C D E(min) F G H C1 Ae Le(mm) Ve Weigh YR28 YR48 YR98
(mm-1) (mm²) (mm³) t(g)
EPC13A/13 1 13.7±0.4 6.65± 4.6±0.2 5.5±0.2 11 4.7± 2.1±0.2 8.8 2.5 12 30 360 2.5 850 880 1050
0.2 min 0.2 min
EPC13.3 1 13.3±0.3 6.9± 4.6±0.2 5.6±0.2 10.5 4.8± 2.5±0.1 8.3 2.34 12.79 28.76 367.8 2.5 850 880 1050
0.2 min 0.2 min
EPC17/17 1 17.8±0.4 8.50± 6.0±0.2 7.6±0.2 14.6 6.20± 2.8±0.2 11.8 2.04 20 40.8 817 4.9 1150 1250 1700
0.2 min 0.2 min
EPC17VE 2 17.9±0.4 8.60± 6.65± 7.7±0.2 14 5.65± 3.6±0.2 10.5min 1.32 28.4 37.6 1070 6.8 2100 2200 2700
0.2 0.2 min 0.2
EPC17C/9 3 17.5±0.4 4.6± 8.5± 7.7±0.2 14 3.0± 3.8±0.2 10.5min 0.98 25 24.6 617 4.89 2200 2300 2850
(EPC17S) 0.2 0.25 min 0.15
EPC18/17 2 18.0±0.3 8.5± 6.65± 7.65± 14.2 5.55± 3.6±0.2 10.6min 1.32 28.2 37.3 1050.3 6.96 1600 1650 2100
0.2 0.2 0.15 min 0.2
EPC19/20 1 19.3±0.5 10.0± 6.0± 8.5± 15.8 7.5± 2.4± 13.1 2.24 21.2 47.5 1007 5.9 950 1000 1250
0.2 0.2 0.25 min 0.2 0.15 min
EPC19B/17 2 19.4± 8.6± 7.25± 8.6± 14.6 5.6± 4.6± 11.1 1.03 37.1 38.1 1416.5 9.2 2200 2300 2800
0.4 0.2 0.2 0.2 min 0.2 0.2 min
EPC22/18 3 21.7± 9.4± 9.5± 10.0± 17 5.5± 6.0± 12.3 0.719 55.8 40.1 2237.6 12.6 3000 3100 3900
0.45 0.2 0.25 0.2 min 0.2 0.2 Min
EPC22.5/2 4 22.5± 10.2± 9.2± 9.0± 18.45 7.8± 5.55± 17.1± 1.31 37.12 48.9 1815.6 6.2 1850 2000 2700
0 0.3 0.2 0.2 0.2 ±0.3 0.2 0.15 0.3
EPC22B/20 23.1± 10.2± 9.8± 10.1± 17.3mi 7.0± 6.5± 15.0± 0.829 55.75 46.23 2577.3 15.6 2500 2600 3500
加大 0.3 0.2 0.25 0.25 n 0.2 0.25 0.5
EPC22B/20 3 22.7± 10.0± 9.8± 10.1± 17.8± 7.0± 6.5± 15.0± 0.832 56.6 47 2664 15.4 2500 2600 3500
0.5 0.2 0.25 0.25 0.5 0.2 0.25 0.5
EPC25/25 1 25.3±0.5 12.5± 8.0± 11.3± 20.8 9.2± 4.0+0.1 17 1.38 41.9 57.7 2417.6 14.3 1600 1700 2100
0.2 0.25 0.25 min 0.2 /-0.2 min

Specification  FIG Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C D E(min) F G H C1 Ae Le(mm) Ve Weigh YR28 YR48 YR98
(mm-1) (mm²) (mm³) t(g)
EDC2537 3 25.0±0.5 18.0± 20± 8.0±0.2 20.15± 13.0± 14.5± 16 0.728 107 78 8346 57 3400 3500 4300
0.15 0.4 0.5 0.2 0.25 min
EPC29/34 3 28.6±0.5 17.2+0 12.4± 12.0± 23.2 12.85+ 7.4± 0.91 83.66 76.5 6400 38 2700 2800 3100
.2/-0.1 0.25 0.25 min 0.2/-0.1 0.25
EPC31.5/ 1 31.5±0.6 21.5± 11.2± 11.2± 14.5± 23.0± 17± 5.3± 1.069 79.28 84.73 6717.3 22 2200 2300 2900
43 0.25 0.25 0.25 0.3 0.55 0.25 0.25 8
EPC3950 5 39±0.5 25± 17± 14.5± 29.5mi 20.1± 25.4 11.2± 0.663 168.5 111.8 18846 101 3900 4100 5100
0.25 0.35 0.25 n 0.25 min 0.25 8 92

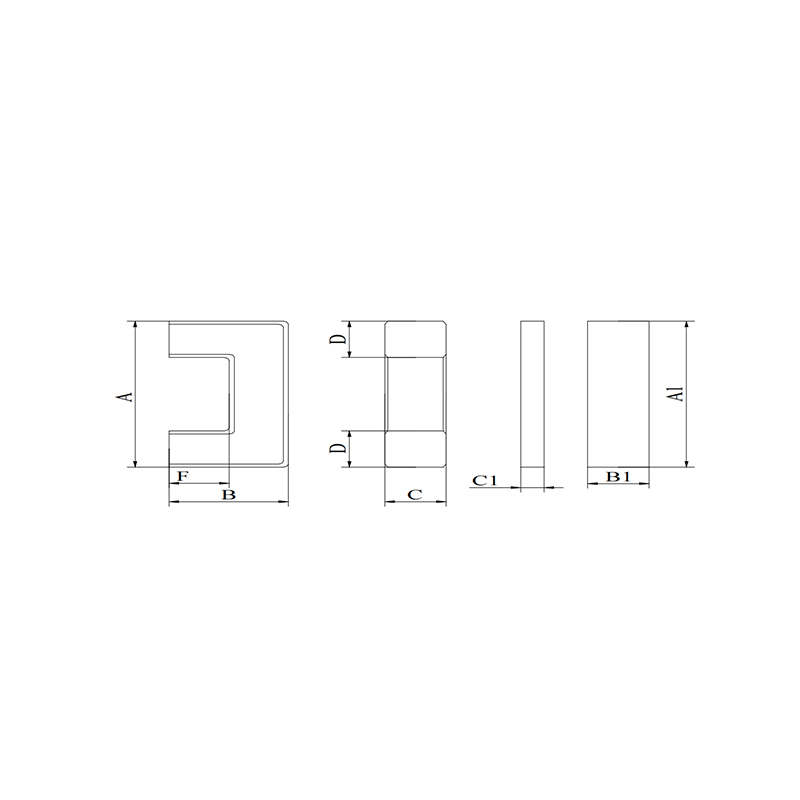

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±30%(nH/N2)
FI A B C D E F G H I C1 Ae Le(mm) Ve Wei YR46 YR56 YR66
G (mm-1) (mm2) (mm3) ght
(g)
UI42.2 1 42.2± 28.62± 15± 30± 22.45± 42.2± 15± 6.1 1.28 95.2 122.3 11649.2 62 4700 5500 6500
0.4 0.3 0.25 0.4 0.3 0.4 0.25 ± 5 1 5 7 4
0.25

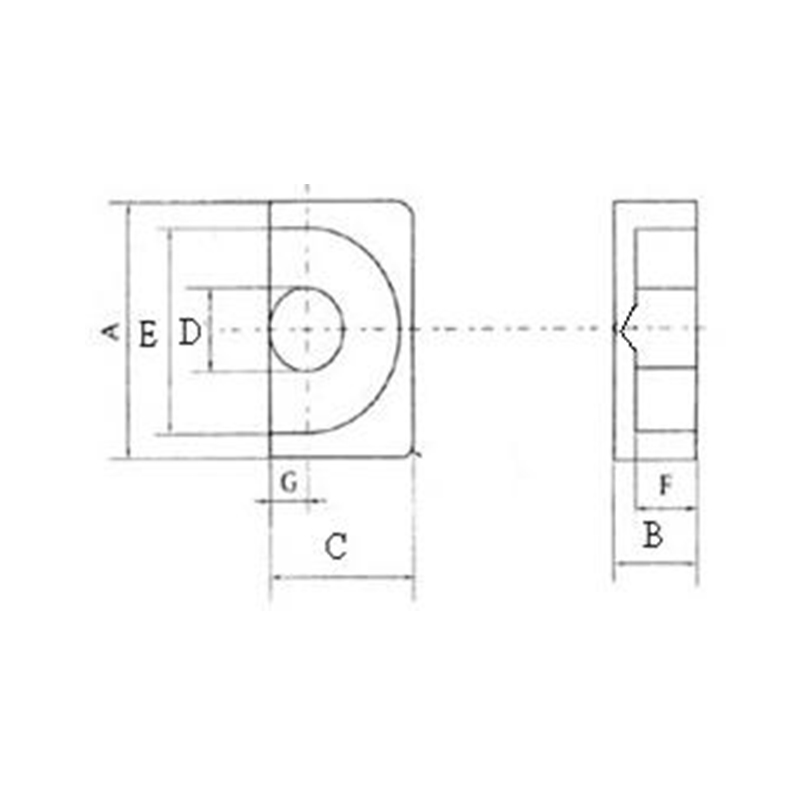

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±30%(nH/N2)
FI A B C D E(min) F C1 Ae Le(mm) Ve Weigh YR46 YR56 YR66
G (mm-1) (mm2) (mm3) t(g)
EP6.0 1 6.0± 3.1± 3.8± 1.7± 4.4± 2.3± 3.51 3.1 10.9 33.79 0.58 1200 1600 2400
0.4 0.1 0.15 0.1 0.15 0.1
GDEP7 1 9.2± 7.5± 3.3± 6.35± 4.7± 3.55± 1.47 10.57 15.54 164 1.9 YR36 YR46 YR56
0.4 0.4 0.2 0.3 0.2 0.2 1400 2800 2900
min min
EP9.0 1 9.2± 4.0± 6.4± 3.3± 7.2MIN 2.8± 1.64 10.3 16.9 174.1 1.9 2800 2900 4000
0.4 0.2 0.2 0.2 0.2
EP13 1 12.5±0.4 6.5±0.2 8.6±0.2 4.2±0.2 9.7 4.5±0.2 1.04 20 20.8 416 5.6 3300 4700 6600

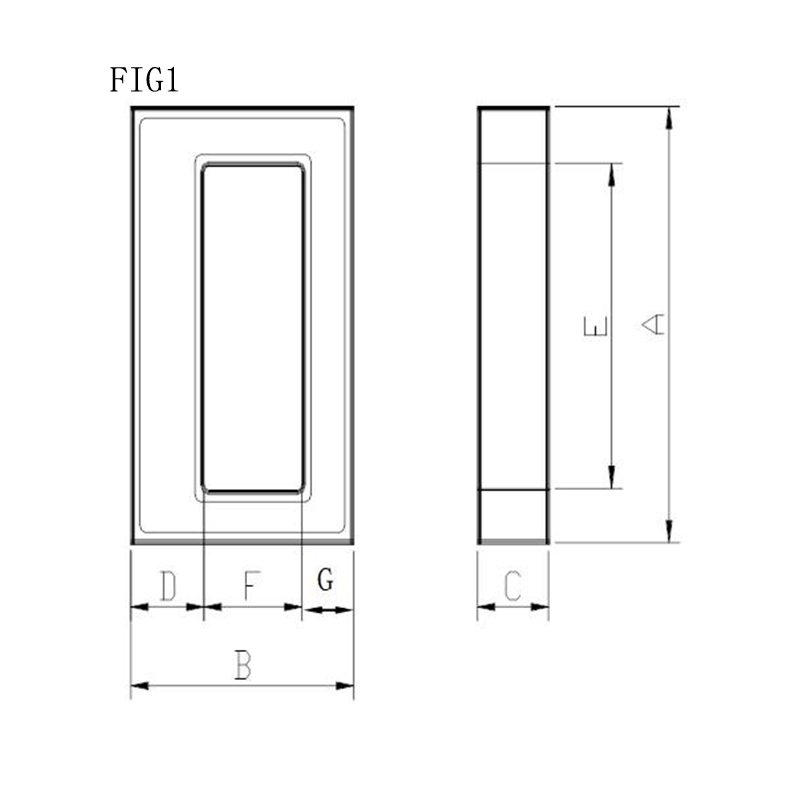

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±30%(nH/N2)
FIG A B C D E F G C1 Ae Le(mm) Ve Weight( YR46 YR56 YR66
(mm-1) (mm²) (mm³) g)
UT15 2 15.2± 15.2± 5.1±0.3 11.0± 4.7±0.3 5.9±0.4 2.0±0.2 2.64 14.87 39.36 586 3.9 3500 4000 4500
0.4 0.4 0.4
UT15.2/15.2/6 2 15.2± 15.2± 6±0.15 11±0.2 4.65± 5.9± 2.1±0.2 2.5 18.9 39.37 744 4.1 5000 5230 6800
0.2 0.2 0.15 0.15
UT16 1 16.0± 8.1±0.3 3.0±0.2 2.6±0.2 13.0± 4.0±0.2 1.5± 5.1 37.5 191.5 1.1 1400 2000 2600
0.3 0.2 0.15
SQ1918 2 19.0± 18.3± 5.5±0.3 14.0± 8.22± 5.04± 2.63 22.34 58.59 1309 6.1 3400 4400 5100
0.4 0.4 0.3 0.3 0.3
UT20 1 20.6± 14.1± 4.6±0.3 4.1±0.2 15.5min 7.3min 4.46 11.93 53.17 634.4 4 2500 3000 3600
0.4 0.3
UT2318 2 22.8± 18.1± 5.0±0.3 14.8± 4.5± 9.1±0.4 4.0± 3.6 22.5 60.8 1390 6.1 3000 3500 4200
0.4 0.4 0.4 0.25 0.25
UT2521 2 24.70± 21.30± 5.20± 15.90± 4.90± 11.50± 4.40± 2.7 25.48 69 1784.9 7.15 3500 4500 5200
0.5 0.5 0.3 0.4 0.25 0.4 0.25 5
SQ3224 2 24.0± 31.6± 9.5± 10.4± 22.5± 9.50± 4.40± 1.53 52.76 80.71 4259.1 23 6000 6400 8000
0.4 0.4 0.3 0.4 0.4 0.4 0.3 9

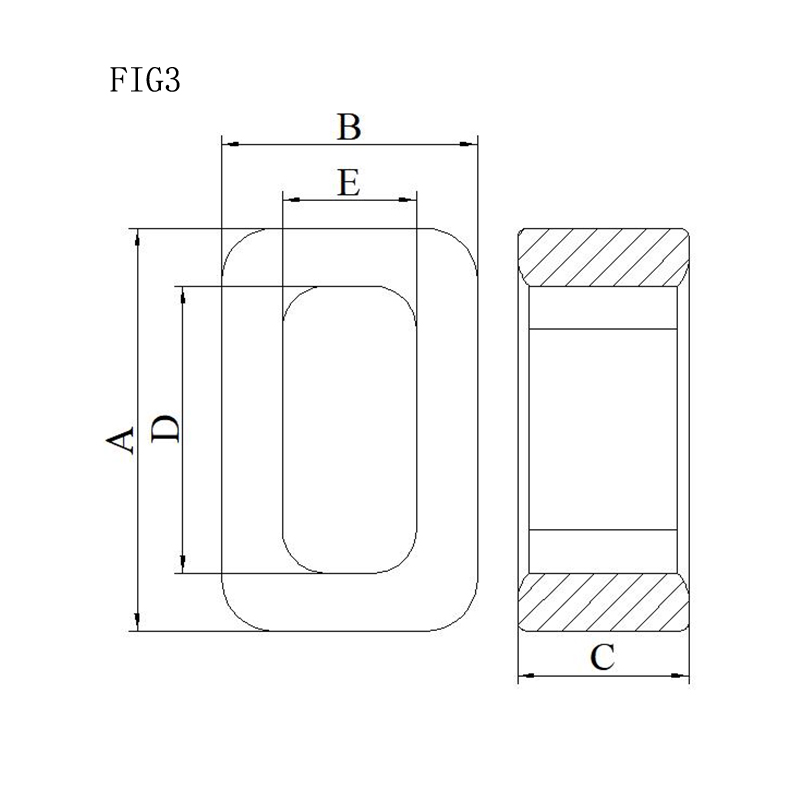

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±30%(nH/N2)
FIG A B C D E F G C1 Ae Le(mm) Ve Weight(g) YR46 YR56 YR66
(mm-1) (mm²) (mm³)
FT24(SQ24) 3 23.35± 14.85± 9.95± 16.65± 7.75± 1.516 34.5 52.3 1804 12.9 2500 3500 5000
0.4 0.4 0.2 0.4 0.4
SQ3827C 2 38.4± 27±0.40 10±0.20 24±0.50 8.4± 1.027 87.87 90.28 7932.8 35 6000 9000 12000
0.5 0.4 3 min min min
SQ65.5/46.5 2 64.9± 46±0.7 16±0.25 49.5± 18±0.7 1.069 156.53 167.34 26193 150 7000 10000 13000
0.9 0.9 64

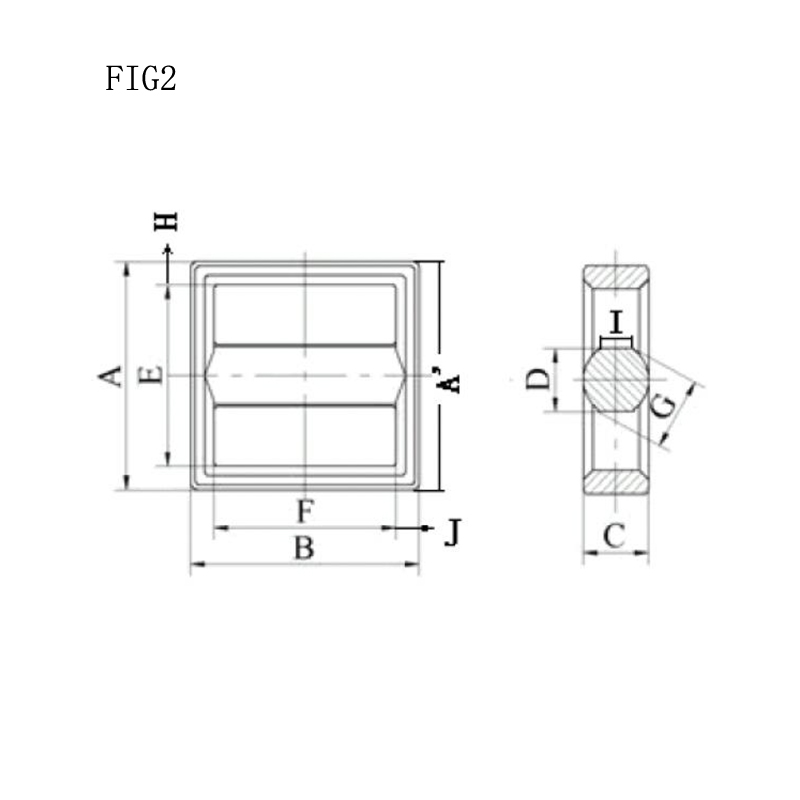

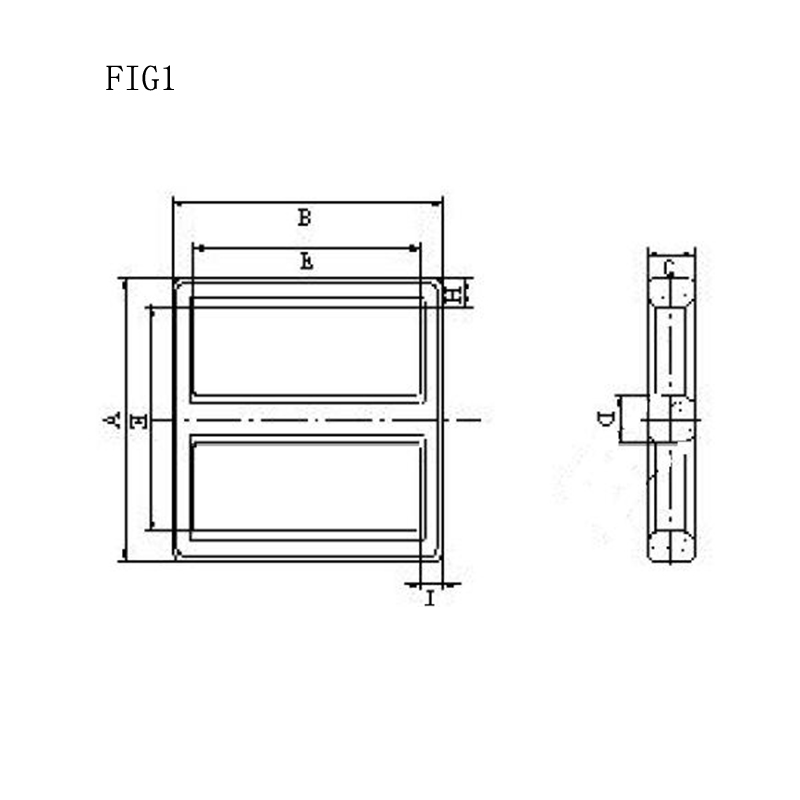

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±30%(nH/N2)
A B C D E F G H I FIG C1 Ae Le(mm) Ve Weight YR46 YR56 YR66
(mm-1) (mm2) (mm3) (g)
ET20 20.1 20.1± 4.4± 4±0.2 15.7m 15.7 1 2.93 17.31 50.76 878.7 4.55 2800 3500 4200
±0.4 0.4 0.2 in min
ET21 20.3 21.7 5.4 4.0± 16.2 17.6 1 3.663 21.7 79.5 1725.3 4.8 4000 5600 6500
± ±0.30 ± 0.2 ± ±0.30 4
0.3 0.3 0.3
ET24 24.2± 24.2± 4.0± 4.0± 19.4 19.4± 5.2max 2.4± 2.4± 1 3.42 17.84 60.98 1087.8 5.45 2800 3500 4200
0.4 0.4 0.2 0.2 ±0.3 0.3 0.15 0.15
ET25 24.5+0. 24.5+0. 6.9± 6.6±0.2 19.5+0 19.8± 7.7max 2.45± 2.45± 2 1.62 37.23 60.12 2238.4 11 3200 3800 4800
7/-0.3 7/-0.3 0.2 .85/-0 0.5 0.15 0.15
0.1
ET28 28.2 28.2 5.0± 5.0±0.2 22.0m 22 26.64 71 1891.7 9.6 3200 3800 4800
+0.8/- #DIV/0! 0.3 in min
0.3 0.3

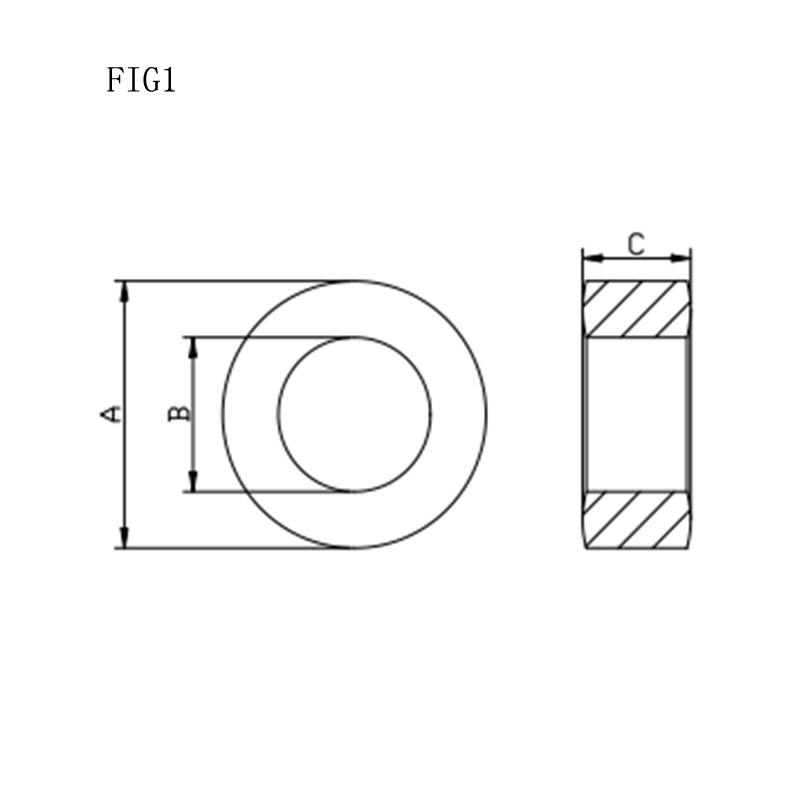

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C C1(mm-1) Ae(mm²) Le(mm) Ve(mm³) Weight(g) YR28 YR38
T6/3/2 6.0±0.3 3.0±0.3 2.0±0.3 4.53 2.88 13.1 37.6 0.21 666 666
T6/3/3 6.0±0.3 3.0±0.3 3.0±0.3 3.02 4.32 13.1 56.6 0.31 1000 1000
T7/4/2.5 7.0±0.4 4.0±0.3 2.5±0.3 4.49 3.65 16.4 59.9 0.32 680 680
T7/4/3 7.0±0.4 4.0±0.3 3.0±0.3 3.74 4.38 16.4 71.9 0.4 820 820
T8/4/2 8.0±0.4 4.0±0.3 2.0±0.3 4.53 3.84 17.4 67 0.38 680 680
T8/4/3 8.0±0.4 4.0±0.3 3.0±0.3 3.02 5.77 17.4 100.2 0.54 1000 1000
T8/4/4 8.0±0.4 4.0±0.3 4.0±0.3 2.26 7.69 17.4 134 0.76 1350 1350
T8/5/3 8.0±0.4 5.0±0.3 3.1±0.3 4.45 4.42 19.7 86.9 0.47 690 690
T9/5/3 9.0±0.4 5.0±0.3 3.1±0.3 3.56 5.83 20.8 121 0.65 850 850
T9/5/4 9.0±0.4 5.0±0.3 4.0±0.3 2.67 7.77 20.8 161 0.84 1150 1150
T10/6/3 10.0±0.4 6.0±0.4 3.0±0.3 4.1 5.87 24.1 141 0.69 750 750
T10/6/4 10.0±0.4 6.0±0.4 4.0±0.3 3.07 7.83 24.1 188 0.94 1000 1000
T10/6/5 10.0±0.4 6.0±0.4 5.0±0.3 2.46 9.79 24.1 235 1.18 1250 1250
T12/7/5 12.0±0.4 7.0±0.4 5.0±0.3 2.33 12.2 28.4 347 1.72 1300 1300
T12.7/7.9/5 12.7±0.4 7.9±0.4 5.0±0.3 2.65 11.8 31.2 367 1.8 1150 1150
T12.7/7.9/6 12.7±0.4 7.9±0.4 6.0±0.3 2.2 14.1 31.2 440 2.2 1400 1400
T12.7/7.9/6.4 12.7±0.4 7.9±0.4 6.4±0.3 2.07 15.1 31.2 470 2.4 1500 1500

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C C1(mm-1) Ae(mm²) Le(mm) Ve(mm³) Weight(g) YR28 YR38
T13/7/5 13.0±0.4 7.0±0.4 5.0±0.3 2.03 14.5 29.5 428 2.3 1500 1500
T14/8/7 14.0±0.4 8.0±0.4 7.0±0.3 1.6 20.5 32.8 671 3.4 2000 2000
T16/9/5 16.0±0.4 9.0±0.4 5.0±0.3 2.18 17 37.2 633 3.1 1450 1450
T16/9/6 16.0±0.4 9±0.4 6.0±0.3 1.82 20.4 37.2 759 3.9 1700 1700
T16/10/6 16.0±0.4 10±0.4 6.0±0.3 2.23 17.7 39.3 695.8 3.6 1400 1400
T16/10/8 16.0±0.4 10±0.4 8.0±0.3 1.36 27.2 37.2 1013 4.6 1850 1850
T16/12/8 16.0±0.4 12±0.4 8.0±0.3 2.73 15.9 43.4 690 4.5 1700 1700
T17/10/6 17.0±0.4 10±0.4 6.0±0.3 1.97 20.51 40.5 830.5 4.8 1600 1600
T17/10/8 17.0±0.4 10±0.4 8.0±0.3 1.48 27.3 40.5 1107.3 6 2100 2100
GDT17/10.7/6.8 17.0±0.4 10.7±0.4 6.8±0.3 21.04 42 883.6 4.9 YR464500 YR566280
T18/10/6 18.0±0.5 10.0±0.4 6.0±0.3 1.78 23.3 41.5 969 5.3 1700 1700
T18/10/8 18.0±0.5 10.0±0.4 8.0±0.3 1.34 31.1 41.5 1292 6.75 2300 2300
T18/10/10 18.0±0.5 10.0±0.4 10.0±0.3 1.07 38.9 41.5 1615 8.7 2900 2900
T18/12/8 18.0±0.5 12.0±0.4 8.0±0.3 1.94 23.6 45.8 1085.6 5.6 1600 1600
T20/10/8 20.0±0.5 10.0±0.4 8.0±0.3 1.13 38.4 43.5 1674 9.1 2600 2600
T20/10/10 20.0±0.5 10.0±0.4 10.0±0.3 0.9 48 43.5 2092.4 11.35 3250 3250
T20/10/12 20.0±0.5 10.0±0.4 12.0±0.3 0.75 57.6 43.5 2510.9 13.4 3800 3800
T20/12/8 20.0±0.5 12.0±0.4 8.0±0.3 1.54 31.3 48.1 1507 8 1800 1800
T22/10/9 22.0±0.6 10.0±0.6 9.0±0.3 0.885 51.3 45.4 2330 12.8 3300 3300
T22/10/10 22.0±0.6 10.0±0.6 10.0±0.3 0.8 56.9 45.4 2587.8 14.6 3500 3500
T22/10/12 22.0±0.6 10.0±0.6 12.0±0.3 0.644 63.4 45.4 2587.8 17.2 4200 4200
T22/14/6 22.0±0.6 14.0±0.6 6.0±0.3 2.32 23.6 54.7 1290 6.5 1200 1200

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C C1(mm-1) Ae(mm²) Le(mm) Ve(mm³) Weight(g) YR28 YR38
T22/14/8 22.0±0.6 14.0±0.4 8.0±0.3 1.74 31.5 54.6 1720 8.8 1600 1600
T22/14/9 22.0±0.6 14.0±0.6 9.0±0.3 1.54 35.4 54.6 1935 9.75 1800 1800
T22/14/10 22.0±0.6 14.0±0.6 10.0±0.3 1.39 39.3 54.6 2150 10.8 2050 2050
T22/14/12 22.0±0.6 14.0±0.6 12.0±0.3 1.16 47.2 54.6 2580 13.1 2400 2400
T22/14/12.7 22.0±0.6 14.0±0.6 12.7±0.3 1.09 49.9 54.6 2730 13.8 2650 2650
T22/14/13 22.0±0.6 14.0±0.6 13.0±0.3 1.07 51.1 54.6 2795 14.3 2750 2750
T25/15/8 25.0±0.6 15.0±0.6 8.0±0.4 1.54 39.1 60.2 2355 12.2 1850 1850
T25/15/10 25.0±0.6 15.0±0.6 10.0±0.4 1.23 48.9 60.2 2944.4 15.2 2400 2400
T27/11/8 27.0±0.6 11.0±0.6 8.0±0.4 0.87 59.8 52.3 3134.9 18 3300 3300
T27/11/10 27.0±0.6 11.0±0.6 10.0±0.4 0.77 67.3 52.3 3526.8 22.5 4100 4100
T28/14/8 28.0±0.6 14.0±0.6 8.0±0.4 1.13 53.8 60.9 3280.9 17.1 2600 2600
T28/14/10 28.0±0.6 14.0±0.6 10.0±0.4 0.9 67.2 60.9 4101.2 22 3200 3200
T28/14/12 28.0±0.6 14.0±0.6 12.0±0.4 0.75 80.7 60.9 4921.6 25.8 3700 3700
T28/18/8 28.0±0.6 18.0±0.6 8.0±0.4 1.78 39.3 69.9 2753.2 18.2 1600 1600
T29/19/15 29.0±0.6 19.0±0.6 15.0±0.4 0.99 73.9 73.2 5408.7 26.6 2850 2850
T30/10/8 30.0±0.6 10.0±0.6 8.0±0.4 0.715 72.4 51.7 3749.1 23.55 4000 4000
T30/11/8 30.0±0.6 11.0±0.6 8.0±0.4 0.78 69.9 54.7 3830 22.6 3700 3700
T31/19/8 31.0±0.6 19.0±0.6 8.0±0.4 1.6 47 75.7 3552 17 1800 1800
T31/19/10 31.0±0.6 19.0±0.6 10.0±0.4 1.28 58.8 75.5 4439.9 21.8 2200 2200
T31/19/13 31.0±0.6 19.0±0.6 13.0±0.4 0.98 76.5 75.5 5771.9 29.2 2900 2900

Specification  Size(mm) Effective Magnetic Circuit Parameters  AL±25%(nH/N2)
A B C C1(mm-1) Ae(mm²) Le(mm) Ve(mm³) Weight(g) YR28 YR38
T31/19/15 31.0±0.6 19.0±0.6 15.0±0.4 0.85 88.2 75.5 6659.8 33.3 3400 3400
T32/10/8 32.0±0.6 10.0±0.6 8.0±0.4 0.675 78.7 53.1 4183.8 26.1 4200 4200
T32/14/8 32.0±0.6 14.0±0.6 8.0±0.4 0.95 68 64.6 4397.7 24.1 3000 3000
T32/14/11 32.0±0.6 14.0±0.6 11.0±0.4 0.69 93.5 64.6 6046.9 33.4 4300 4300
T32/14/13 32.0±0.6 14.0±0.6 13.0±0.4 0.585 110.5 64.6 7146.3 39.2 4800 4800
T33/11/8 33.0±0.6 11.0±0.5 8.0±0.4 0.715 79.7 56.9 4536.4 29.8 4100 4100
T34/16.5/13 34.0±0.6 16.5±0.5 13.0±0.4 0.67 108.9 72.8 7931 41.8 4200 4200
T36/19/13 36.0±0.6 19.0±0.5 13.0±0.4 0.756 106.8 80.8 8628.6 47.2 3850 3850
T36/23/15 36.0±0.6 23.0±0.6 15.0±0.4 0.935 95.9 89.6 8596 43.2 3100 3100
T36/25/15 36.0±0.6 25.0±0.6 15.0±0.4 1.15 81.6 93.7 7647.4 38.8 2500 2500
T37/19/12 37.0±0.6 19.0±0.6 12.0±0.4 0.78 104.1 81.7 8511.9 45 3600 3600
T37/19/15 37.0±0.6 19.0±0.6 15.0±0.4 0.63 130.1 81.7 10639.8 56 4500 4500
T38/19/13 38.0±0.6 19.0±0.6 13.0±0.4 0.697 118.6 82.7 9819.8 54 4100 4100
T40/23/15 40.0±0.6 23.0±0.6 15.0±0.4 0.757 124.3 94.1 11694 61 3800 3800
T40/23/16 40.0±0.6 23.0±0.6 16.0±0.4 0.71 132.6 94.1 12473.8 64.7 4000 4000
T47/27/15 47.0±0.6 27.0±0.6 15.0±0.5 0.756 146.2 110.5 16156 83 3800 3800
T49/25/15 49.0±0.8 25.0±0.6 15.0±0.5 0.622 173.36 107.91 18706.76 134 10000/YR36
T50/20.2/24 50±0.8 20.2±0.8 24.0±0.5 0.289 334.09 96.5 32241.51 198 2000/YR36
T50/26.6/16 50.0±0.5 26.6±0.4 16.0±0.4 0.622 181.11 112,69 20409.4 134 10000/YR36
